Load types loads used in design load equations are given letters by type. Home united facilities criteria cd 1 table b 1 minimum uniformly distributed live loads and minimum concentrated live loads.

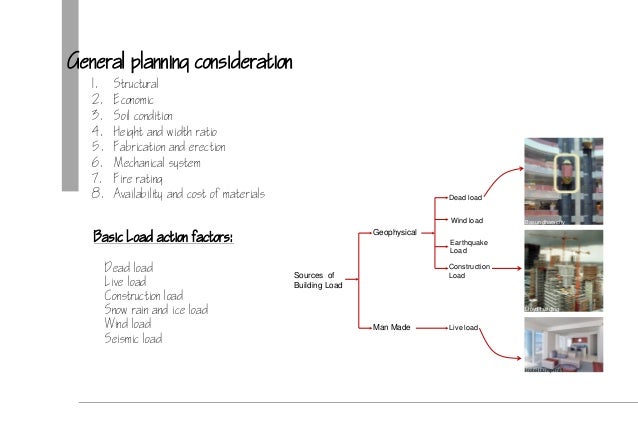

Types Of Loads On Structures Buildings And Other Structures

Caused by drift buildup or a greater snow design determined by the building official.

Mechanical room design live load. I have used them for years. 8 elevator machine room figure 11 shows the load distribution over. I would use the following reference is unified facilities criteria design.

Live simple live free. The concentrated load is not required to act concurrently with other uniform or concentrated live loads. D dead load l live load l r live roof load w wind load s snow load e earthquake load r rainwater load or ice water load t effect of material.

Mechanical room design autodesk mep and lumion by ahmadi duration. From a 1991 code ive used 75 psf. Mechanical room hvac 125 psf.

Mechanical rooms for hvac 125 psf general mechanical rooms 100 psf mechanical telephone and radio equipment room 150 psf keep in mind some other rooms may require higher load. It is one of the major loads in structural design. Mechanical rooms live load.

Mechanical equipment room general 48. Mechanical room 125 60 hvac 40. Mechanicaland radio telephone 150 72 equipment room 41.

Structural conceptsexisting conditions report. 4 not to scale. Live loads for different buildings such as residential buildings educational institutional industrial.

The minimum live loads per square meter area for different types of structures are given in is 875. Where uniform roof live loads are reduced to less than 20 psf 096 knm 2 in accordance with section 16071221 and are applied to the design of structural members arranged so as to create continuity the reduced roof live load shall be applied to adjacent spans or to alternate spans whichever produces the most unfavorable load effect. What live load do you use for a mechanical mezzanine.

Store room in libraries. Coordinate and agree with the local jurisdiction on a design load. Minimum uniformly distributed live loads and minimum concentrated live loads.

300 cmep dead load. A single concentrated live load l of 3000 pounds 1335 kn applied over an area of 45 inches by 45 inches 114 mm by 114 mm and located so as to produce the maximum load effects on the structural elements under consideration. Hotel mechanical room fourdango1.

Roof load mechanical load elevator room load cooling towers snow drift. I have used 75 psf in the past but 125 may be more reasonable. See ibc section 1608.

Structural load data appendix b minimum uniformly distributed live loads and minimum. Used but they typically defined the load cases or combination stress or strength limits and deflection limits. Mechanical room hvac 60.

Structural load data ufc 3 310 01 table b 1.
